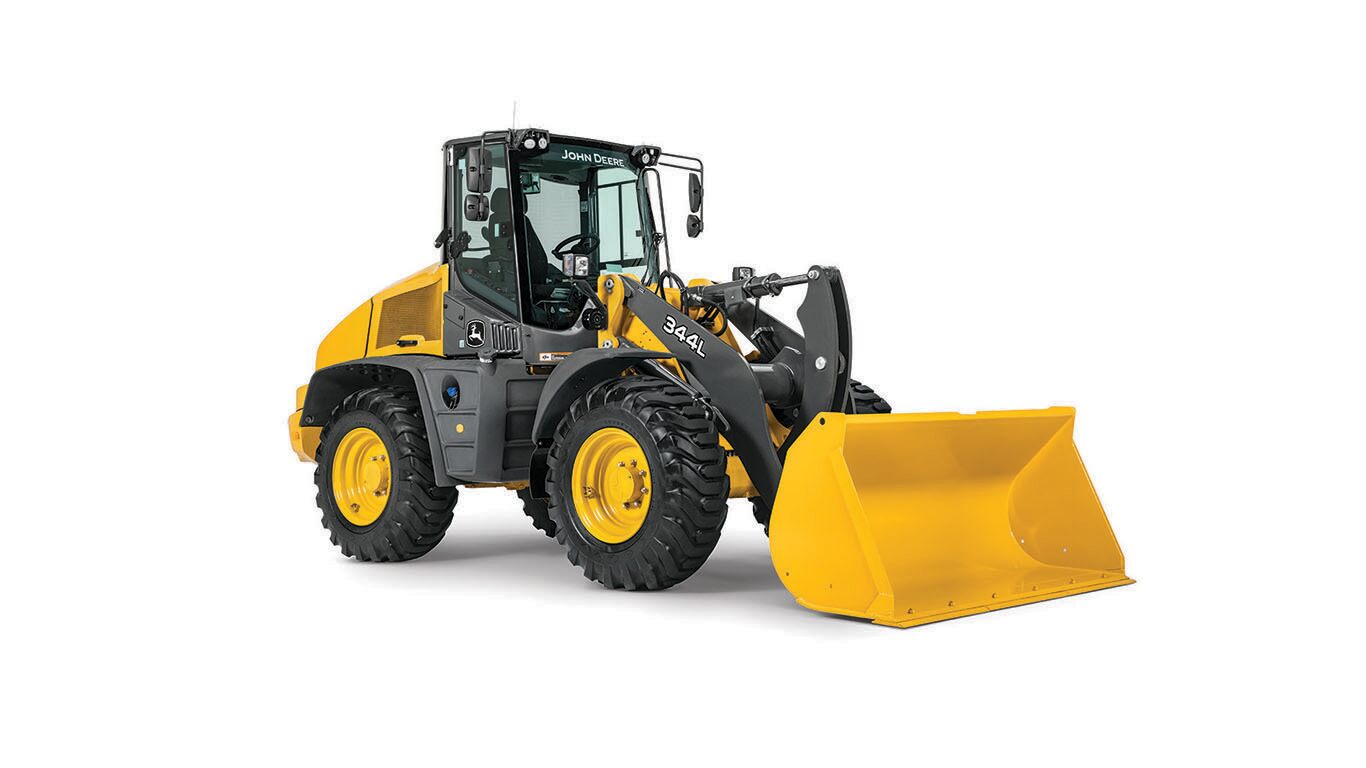

344L WHEEL LOADER
Wheel Loader
- Gross Power: 78 kW (106 hp)
- Net Power: 76 kW (103 hp)
- Operating Weight: 8860 kg (19,533 lb.)
- Bucket Capacities: 1.5–2.0 m3 (2.0–2.6 cu. yd.)
Apply For Financing
Features
- Comfortable cab features better visibility to the loader arm and bucket and more ergonomic controls.
- Rimpull control allows operators to adjust the machine to conditions, reducing tire and driveline wear.
- Redesigned engine compartment and cooling package improve airflow and reduce the amount of debris entering the system.
- Add a reversible fan for quick core cleanout in high-debris applications.
- Industry-exclusive Articulation Plus™ steering system delivers a greater full-turn tipping load, a tighter turning radius, and more stability than a standard articulation loader.
- New loader-arm and coupler design delivers better load-carrying capability throughout the lift path. This keeps the load level from ground level to truck-bed height to full height— retaining more material in the bucket or on the forks.
- Industry-exclusive Articulation Plus™ steering system delivers a greater full-turn tipping load, a tighter turning radius, and more stability than a standard articulation loader.
- New loader-arm and coupler design delivers better load-carrying capability throughout the lift path. This keeps the load level from ground level to truck-bed height to full height— retaining more material in the bucket or on the forks.
Specifications
Compare the specifications of up to 4 models
| DRIVELINE | 344l-wheel-loader Current Model |
|---|---|
| Engine Manufacturer | John Deere |
| Engine Model | PowerTech 4045T |
| Emission Rating | Tier 4 |
| Displacement, ltr (Inches³) | 4.5 (275) |
| Rated Speed, rpm | 2000 |
| Engine Output - Net, kW (hp) | 76 (103) |
| Torque, Nm (lbf / ft) | 405 (299) |
| Transmission Type | Hydrostatic |
| Front Differential Type | Locking |
| Rear Differential Type | Open |
| Tire size - Standard | 17.5 R25 |
| Service Brake - Type | Wet Disc & Drum |
| Service Brake - Location | Driveline |
| Service Brake - Actuation | Hydraulic |
| Parking Brake - Type | Wet Disc |
| DIMENSIONS | |
| Height - Over Cab, mm (ft/in) | 3030 (9 ft 11 in) |
| Wheelbase, mm (ft/in) | 2600 (8 ft 6 in) |
| Length - Including Bucket, mm (ft/in) | 6300 (20 ft 8 in) |
| Ground clearance, mm (inches) | 430 (16.9) |
| Width Over tires - Std, mm (ft/in) | 2380 (7 ft 10 in) |
| Height - Pivot Pin, mm (ft/in) | 3720 (12 ft 2 in) |
| Reach - At 2130mm 45° Dump, mm (ft/in) | 1640 (5 ft 5 in) |
| Turning Circle - Maximum, mm (ft/in) | 4590 (15 ft 1 in) |
| CAPACITIES | |
| Fuel Tank, ltr (gallons (US)) | 155 (40.9) |
| Hydraulic Tank, ltr (gallons (US)) | 115 (30.4) |
| Axle - Front, ltr (gallons (US)) | 7.5 (1.975) |
| Axle - Rear, ltr (gallons (US)) | 7.5 (1.975) |
| Transmission, ltr (gallons (US)) | 2 (0.525) |
| Heaped Capacity, m³ (yd³) | 1.5 (2) |
| Bucket Capacity - Smallest, m³ (yd³) | 1.5 (2) |
| Largest bucket capacity, m³ (yd³) | 2 (2.6) |
| Breakout - Bucket , kgf (lbf) | 7443.9 (16411) |
| Ride Control System | Optional |
| System Voltage, V | 12 |
| Alternator Output, Amp | 90 |
| Pump Type | Gear |
| Pump Flow - 1, lt/min (gallons (US) / min) | 115 (30) |
| System Pressure, bar (PSI) | 240 (3480) |
| WEIGHTS | |
| Operating Weight, kg (lbs) | 8860 (19533) |
