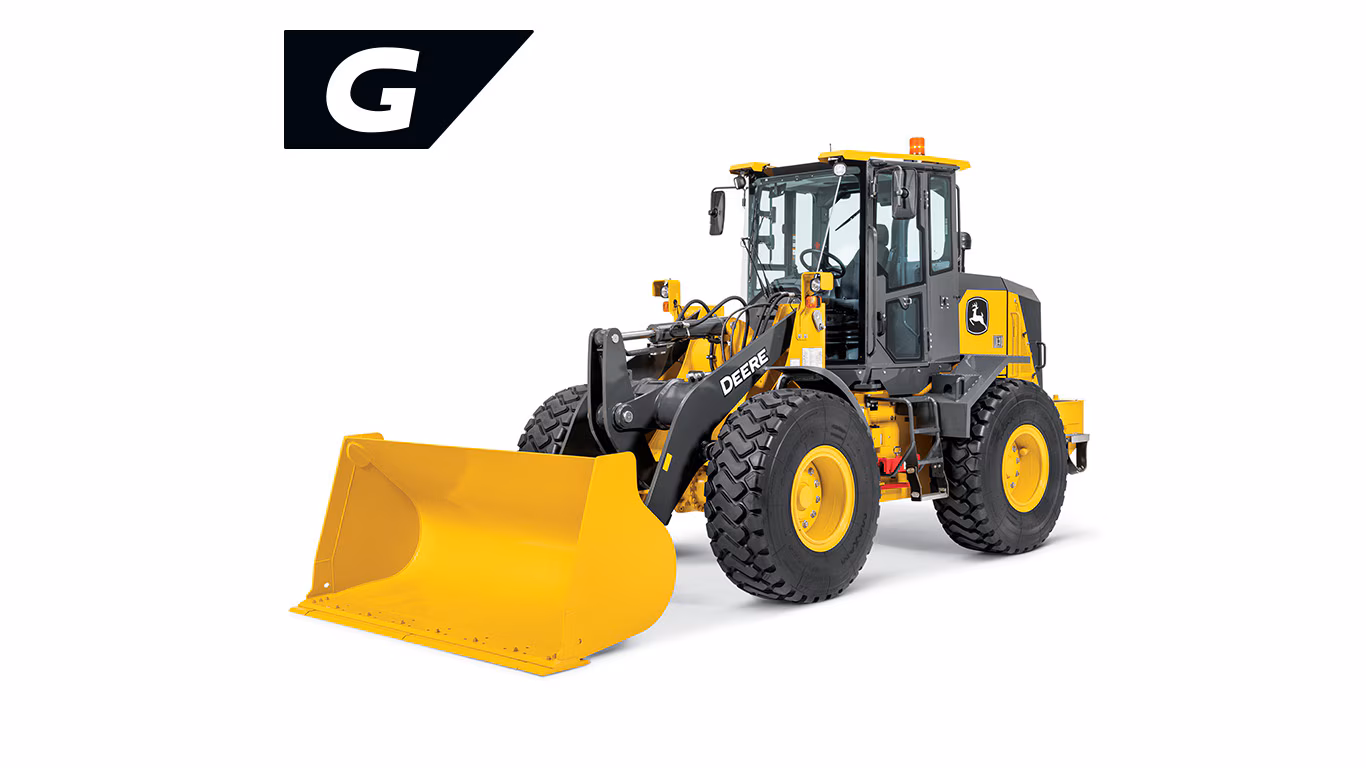

444 G WHEEL LOADER

Mid-Size Wheel Loader

  • Net Power: 92 kW (124 hp) at 2,100 rpm
  • Operating Weight: 11,289-11,941 kg (24,887-26,325 lb.)
  • Bucket Capacity: 1.9-2.1 m3 (2.5-2.75 cu. yd.)

Apply For Financing





Features



  • Powered by the reliable John Deere 4.5L engine found in our 444 P-Tier Loader, the 444 G-Tier uses components similar to those featured in both our current and previous series loaders for decades.
  • Rugged powertrain with newly updated transmission, limited slip differentials, and hydraulic and electrical systems are the result of thousands of hours of experience on a wide range of jobsites.
  • Auto-idle and auto shutdown reduce engine speed or turn it off after a period of inactivity to save fuel and warranty hours.
  • The John Deere 444 G-Tier Wheel Loader was designed to deliver a low-cost solution while providing the type of performance you're accustomed to with the 444 P-Tier model.
  • Equip your John Deere 444 G-Tier Loader with a Hi-Vis/ISO- or JRB-style coupler, which accepts L- and K-Series as well as G-, P-, and X-Tier buckets and other attachments, to maximize machine utilization and versatility.
  • Comfortable and spacious cab features ergonomically placed joystick controls, foot pedals, sealed-switch module (SSM), and adjustable five-inch monitor that displays vital machine data as well as the view from the rearview camera.*
  • Common controls will be familiar to both novice and skilled operators. In-cab adjustable boom-height kickout, return to carry, and return to dig can be easily activated from the SSM, boosting productivity in repetitive applications.

*Rearview camera standard for EPA Final Tier 4/EU Stage V; optional for EPA Tier 3/EU Stage IIIA.

  • For extra reach when loading trucks, hoppers, or feed mixers, adding High-Lift linkage provides an extra 17 inches of hinge-pin height over standard linkage.
  • Contractors and governmental agencies can specifically benefit from using the 444 G-Tier Loader for snow-removal tasks. Snow tires, couplers, beacons, and third-function hydraulics are available from the factory to equip your machine to handle the white stuff.
  • Renowned John Deere and dealer support, parts availability, and warranty help keep your equipment up and running.
  • All daily service points including fuel refill are conveniently grouped at ground level on the left side of the machine.
  • Sight gauges for transmission and hydraulic fluid levels are easy to read. Hinged doors provide wide-open access to the engine, cooling system, and other components.

Specifications


Compare the specifications of up to 4 models

DRIVELINE 444-g-wheel-loader
Current Model
Engine ManufacturerJohn Deere
Engine ModelPowerTech E 4045H
Displacement, ltr (Inches³)4.5 (276)
Rated Speed, rpm2100
Engine Output - Net, kW (hp)92 (124)
Torque, Nm (lbf / ft)525 (387)
Transmission TypePowershift
Front Differential TypeLimited Slip
Rear Differential TypeLimited Slip
Tire size - Standard17.5 R25
Service Brake - TypeWet Multi Disc
Parking Brake - TypeWet Multi Disc
DIMENSIONS
Wheelbase, mm (ft/in)2760 (9 ft 6 in)
Height - Over Cab, mm (ft/in)3130 (10 ft 3 in)
Ground clearance, mm (inches)349 (13.75)
Width Over tires - Std, mm (ft/in)2415 (7 ft 11 in)
Height - Pivot Pin, mm (ft/in)3580 (11 ft 9 in)
Reach - At 2130mm 45° Dump, mm (ft/in)1440 (4 ft 9 in)
CAPACITIES
Fuel Tank, ltr (gallons (US))190 (50)
Hydraulic Tank, ltr (gallons (US))92 (24.3)
Heaped Capacity, m³ (yd³)1.9 (2.5)
Breakout - Bucket, kgf (lbf)8000 (17637)
Pump TypePiston
Pump Flow - 1, lt/min (gallons (US) / min)140 (37)
System Pressure, bar (PSI)248.21 (3600)
WEIGHTS
Operating Weight, kg (lbs)10026 (22077)
